KD500 & KD510 AGL Primary Connector Kit

  1. Home
  2. Solutions and Systems
  3. Supplementary Products
  4. AGL Cables
  5. KD500 & KD510 AGL Primary Connector Kit

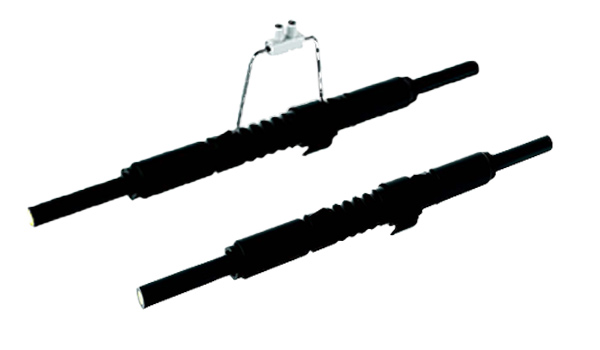

KD500 & KD510 are designed for a fast-and-easy watertight connection between the primary cable and the series isolating transformer. The connectors are easy and quick to assemble.

KD500 & KD510 Primary connectors fit to a wide range of cable sizes and are FAA certified.

The KD500 is for use on AGL cable that requires a screen while the KD510 is ideal for unscreened AGL primary cables.

Product informationEnquire now

Product Information

Available for screened cables (KD500) and unscreened cables (KD510)
• Fast to install 5-10 min
• FAA certified
• Nominal rating: 25 A and 5000 V
• Superior isolation resistance by thermoplastic elastomer (TPE)
• Cable diameter 10,0 – 22,0 mm (0.393 – 0.866 inches)
• Conductor size 6 – 10 mm² (8 – 6 AWG)
• ROHS compliance with EU directive NO2002/95/EC
