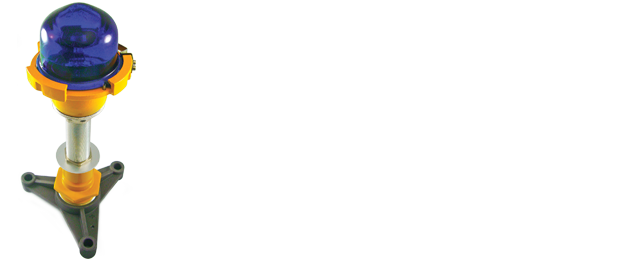

The ZA216  is an Omni-directional tungsten halogen taxiway and apron edge fitting for CAT III all weather operation airfield ground lighting (AGL) systems. Suitable for use in 6.6A airfield lighting circuits normally supplied from 1 x 45W isolating transformer. Power consumption varies between 30W and 45W depending upon type of lamp selected.

Product Information


  • Lightweight and robust due to its predominantly aluminium alloy construction which also gives good corrosion resistance.
  • Removal of glass dome for lamp replacement or maintenance achieved without the need for any tools due to the simple bayonet fit of the glass.
  • Ball joint mounting arrangement facilitates levelling of the light on installation.
  • Choice of mounting stems available (M32 threaded or 25mm (1”) plain).
  • Mounting stem compatible with 2” BSP Mounting using frangible coupling.
  • Frangibility inherent in the M32 threaded mounting stem.
  • Smooth outer glass surface resists build up of dirt.
  • Bi-pin or PK30D lamp options.
  • Optional lamp by-pass device can be fitted if required.
  • Powder coat paint finish in golden yellow.
  • IMM available on request.
  • Lamp life no less than 1000hrs.

Typical installation methods

  • On a 204mm (8”) dia. ground mounting plate
  • On a FAA L867 type base can
  • On a FAA type frangible coupling
  • On a ground mounting spike

Compliant to Latest Standards

As a taxiway edge light:

  • ICAO Annex 14, clause 5.3.17
  • FAA FAA L-86IT
  • CAA CAP168 Table 6A/1 item 8
  • BSI BS3224 Part 4, elevated fittings
  • NATO STANAG 3316
