The Smart Mini is a type of control system which has been designed for airports with lower volumes of traffic that seek a creative yet practical solution to complex airport and airfield challenges. The Smart Mini, which is part of the Smart suite of control products is the latest development for these types of products.

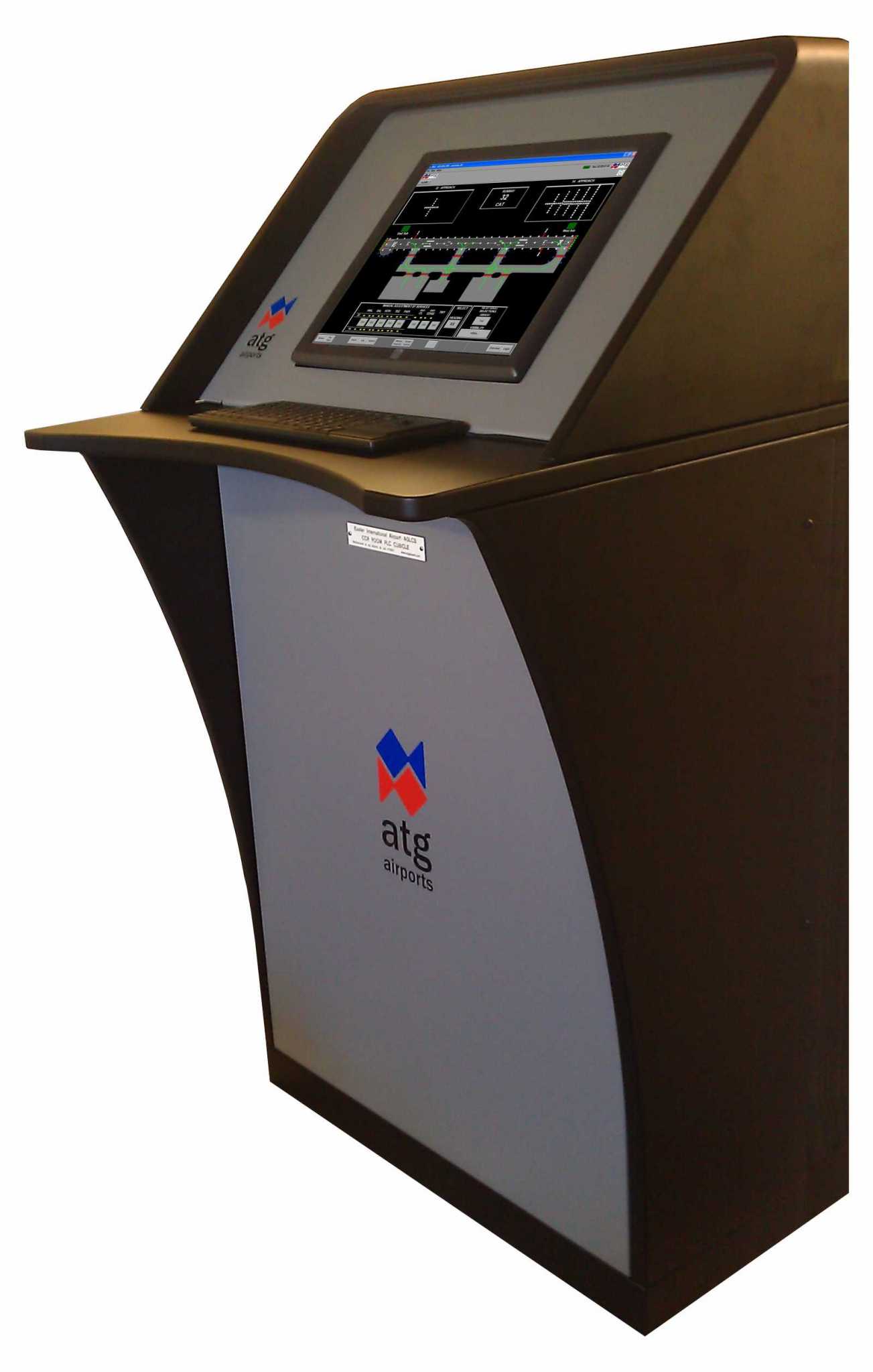

The SmartMini system was developed in response to customers’ demands for much-needed space-saving devices. This system is stand alone, and it can be installed in the visual control room in a self-contained cubicle that allows access to a touchscreen for the operators, and also access for engineering teams to the hardware when required. Alternatively, the hardware can be installed in the plant room/substation with just a touchscreen being installed in the Visual Control Room (VCR).

Product Information

Normally this system is designed for airports that have a single substation, where the CCR’s are installed, co-located with the air traffic control building.

The stand-alone standard system is able to control up to 12 constant current regulators that uses hard wire for control and monitoring. However, if TCP/IP Ethernet protocol or Profibus communications is used then the system has the capability for the connection of 24 CCR’s.

Although the SmartMini is a standard product, there is plenty of flexibility in its design; therefore, it can be configured to control additional equipment if required. The system is the child of ‘SmartControl’ and subsequently benefits from its development of hardware design and the core software that is utilised.

As the airport expands, and requirements for control of additional equipment becomes a necessity, the SmartMini can be expanded accordingly. New control positions, additional substations configured onto the network, maintenance screens, contingency VCR or intelligent field switching all can be added.

Contact us for further information on how SmartMini would meet your airfield requirements.

Start your project with atg airports

ATG Airports is a leading global airfield lighting specialist offering design through to supply, installation or simply maintenance of an existing system. Get in touch to find out more about our range of products and services.
