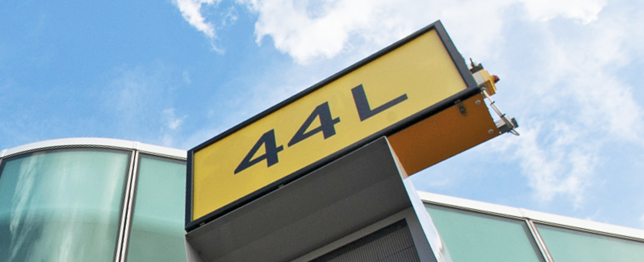

44 L Sign

Product Description

atg airports developed SNIBs designed to operate over the current range from 2.8 to 6.6 Amp standard AGL circuit via a suitable series isolating transformer or, optionally, 230V mains supply signs can be either 50 or 60 Hz operation. Standard series circuit transformers can be used for 6 or 12 amp circuits. An external FAA style moulded plug is supplied as standard for connection to AGL circuits.

  • Highly visible in all weather conditions
  • Supplied fully assembled
  • Special design features for ease of maintenance
  • Extruded aluminium profile – up to 6.2m long anodised and powder coated in * RAL 1007 aviation yellow
  • Flexibility – can either be mounted on a stand, pole or wall support
  • 10 year anti-fade guarantee on all fascias
  • UV stabilised 4mm polycarbonate
  • Cabinets and fascias proven to withstand wind loads of up to 90m/ps
  • Photo cell activation when ambient light falls below 100 lux
  • Powder coated corrosion resistant extruded aluminium casing
  • Hinged front face for ease of maintenance
  • Weather-proof to IP 655
  • Temperature range of -25°C to +55°C
  • Signfix channel to secure into position
  • Non oxidising stainless steel clips and fixings

The size of the cabinet is dependant on the amount of characters required.

Request a Quote

  • This field is for validation purposes and should be left unchanged.

Certified to Latest Standards

  • ICAO Annex 14-Vol. 1 Para 5.4 and Appendix 4
  • UK CAP 168
  • Cenelac Pr ENV 50235/1996
  • NATO Stanag 3316
  • CASR Port 139 Manual of Standards (MOS) Aerodromes
  • JSP 554

Product Data Sheet

See our full range of taxiway guidance signs. Click the button below download the product data sheet
